AGRADE SOLAR PANELS
SW545M7-SHLD144 SERIES
Mono 144, 10BB HALF-CELL Double Glass Monocrystalline PERC PV Module
VIEW TECHNICAL SPECIFICATIONS BELOW
Save on electricity costs. Cut down by 35-95%.
TIER 1 - Manufacturer
Our cutting-edge solar panels, the pinnacle of sustainable energy solutions. Crafted with precision and innovation, these solar panels seamlessly integrate into any setting, providing a reliable and renewable source of electricity. With a commitment to quality and durability, embrace a greener tomorrow with our exceptional solar panel solutions, taking you closer to a cleaner, brighter, and sustainable future.
Details
Mono 144 Solar Panel
Features
540-550w
Power Range
21.28%
MAXIMUM EFFECIENCY
0.45%
YEARLY DEGRADATION
Excellent Cells Efficiency
MBB technology reduce the distance between busbars and finger grid line which is benefit to power increase.
Anti PID
Ensured PID resistance through the quality control of cell manufacturing process and raw materials.
TIER 1 - Manufacturer
Global,Tier 1 bankable brand,with independently certified advanced automated manufacturing.
Better Weak Illumination Response
More power output in weak light condition, such as haze, cloudy, and early morning.
Adapt To Harsh Outdoor Environment
Resistant to harsh environments such as salt, ammonia, sand, high temperature and high humidity environment.
Excellent Quality Management System
Warranted reliability and stringent quality assurances well beyond certified requirements.
Technical Details
Mono Solar Panel

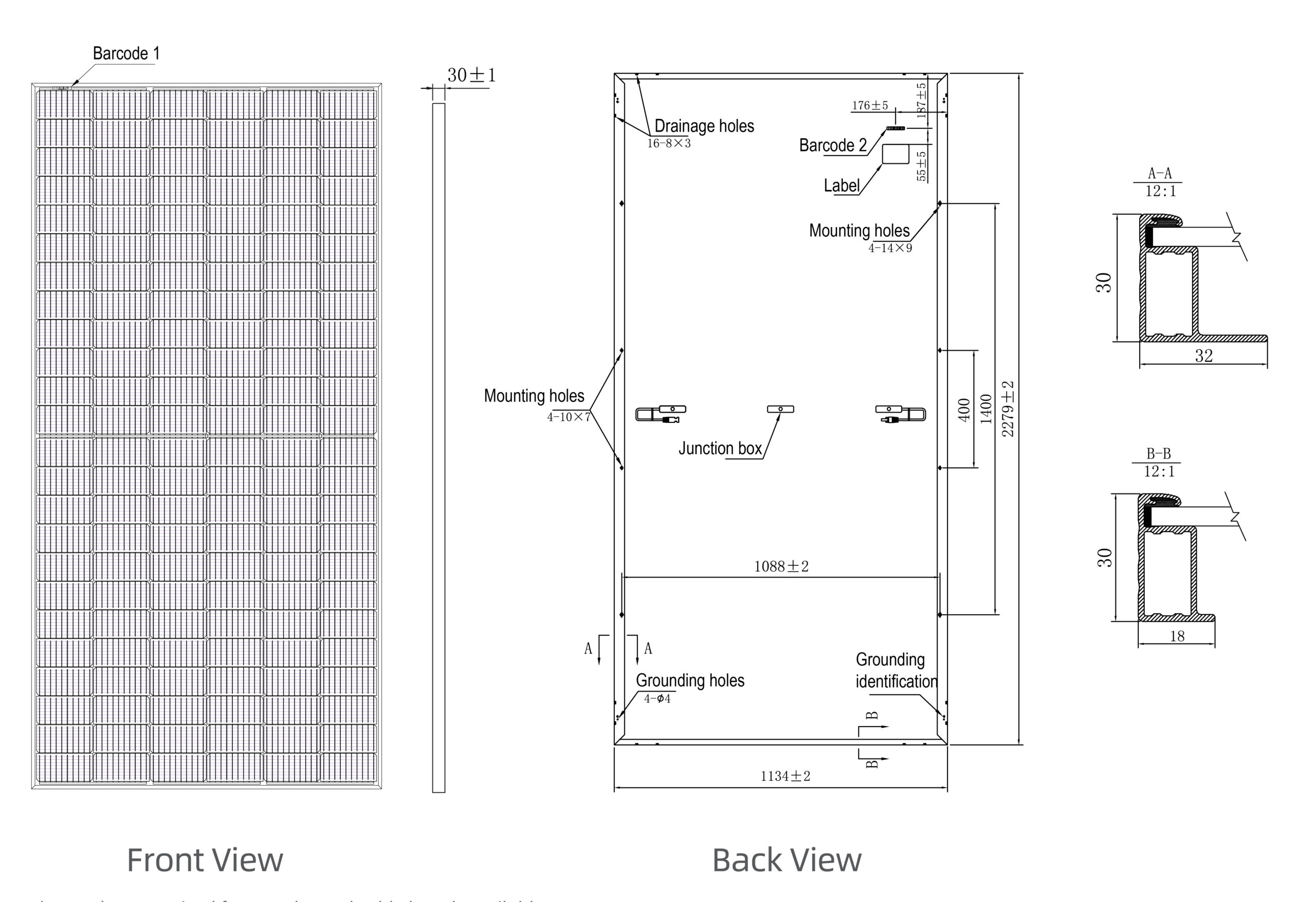

mechanical data
| Mechanical data | |
| Solar cells | Mono PERC |
| Mono PERC | 144 (6×24) |
| Module dimension | 2279×1134×30 mm (With Frame) |
| Weight | 31.5±1.0 kg |
| Glass | 2.0 mm+2.0mm, High Transmission, AR Coated Heat Strengthened Glass |
| Junction box | IP 68, 3 diodes |
| Cables | 4 mm2 ,350 mm (With Connectors) |
| Connectors* | MC4-compatible |
*Please refer to regional datasheet for specified connector
Technical Details
Mono Solar Panel
Electrical characteristics
| stsc*
| Electrical characteristics | stsc* | |||
|---|---|---|---|
| Nominal Power Watt Pmax(W)* | 540 | 545 | 550 |
| Power Output Tolerance Pmax(%) | 0~+3 | 0~+3 | 0~+3 |
| Maximum Power Voltage Vmp(V) | 41.40 | 41.60 | 41.80 |
| Maximum Power Current Imp(A) | 13.05 | 13.11 | 13.16 |
| Open Circuit Voltage Voc(V) | 49.70 | 49.90 | 13.9 |
| Short Circuit Current Isc(A) | 13.78 | 13.84 | 13.9 |
| Module Efficiency (%) | 20.89 | 21.09 | 21.28 |
*The data above is for reference only and the actual data is in accordance with the pratical testing
*STC (Standard Test Condition): Irradiance 1000W/m², Module Temperature 25℃, AM 1.5 *Measuring tolerance: ±3%
Technical Details
Mono Solar Panel
ELECTRICAL CHARACTERISTICS
| NMOT
| ELECTRICAL CHARACTERISTICS | NMOT | |||
|---|---|---|---|
| Maximum Power Pmax(Wp) | 403.50 | 407.20 | 410.80 |
| Maximum Power Voltage Vmpp(V) | 38.50 | 38.50 | 38.90 |
| Maximum Power Current Impp(A) | 10.48 | 10.52 | 10.57 |
| Open Circuit Voltage Voc(V) | 46.40 | 46.60 | 46.80 |
| Short Circuit Current Isc(A) | 11.13 | 11.18 | 11.23 |
*NMOT: Irradiance 800W/m²,Ambient Temperature 20℃,AM 1.5,Wind Speed 1m/s
Technical Details
Mono Solar Panel
Temperature ratings*
| Temperature ratings* | |
| NMOT | 44°C ±2°C |
| Temperature coefficient of Pmax | -0.35%/°C |
| Temperature coefficient of Voc | -0.29%/°C |
| Temperature coefficient of Isc | 0.05%/°C |
Technical Details
Mono Solar Panel
Working Conditions
| Working Conditions | |
| Maximum system voltage | 1500 V DC |
| Operating temperature | -0.35%/°C |
| Maximum series fuse | 25 A |
| Front Side Maximum Static Loading | Up to 5400 Pa |
| Rear Side Maximum Static Loading | Rear Side Maximum Static Loading |
*Do not connect Fuse in Combiner Box with two or more strings in parallel connection
Remark:Electrical data in this catalog do not refer to a sinleg module and they are not part of the offer.
They only serve for comparison among different module types.
Caution:Please be kindly advised that PV modules should be handled and installed by qualified people who have professional skills and please carefully read the safety and installation instructions before using our PV modules.
Technical Details

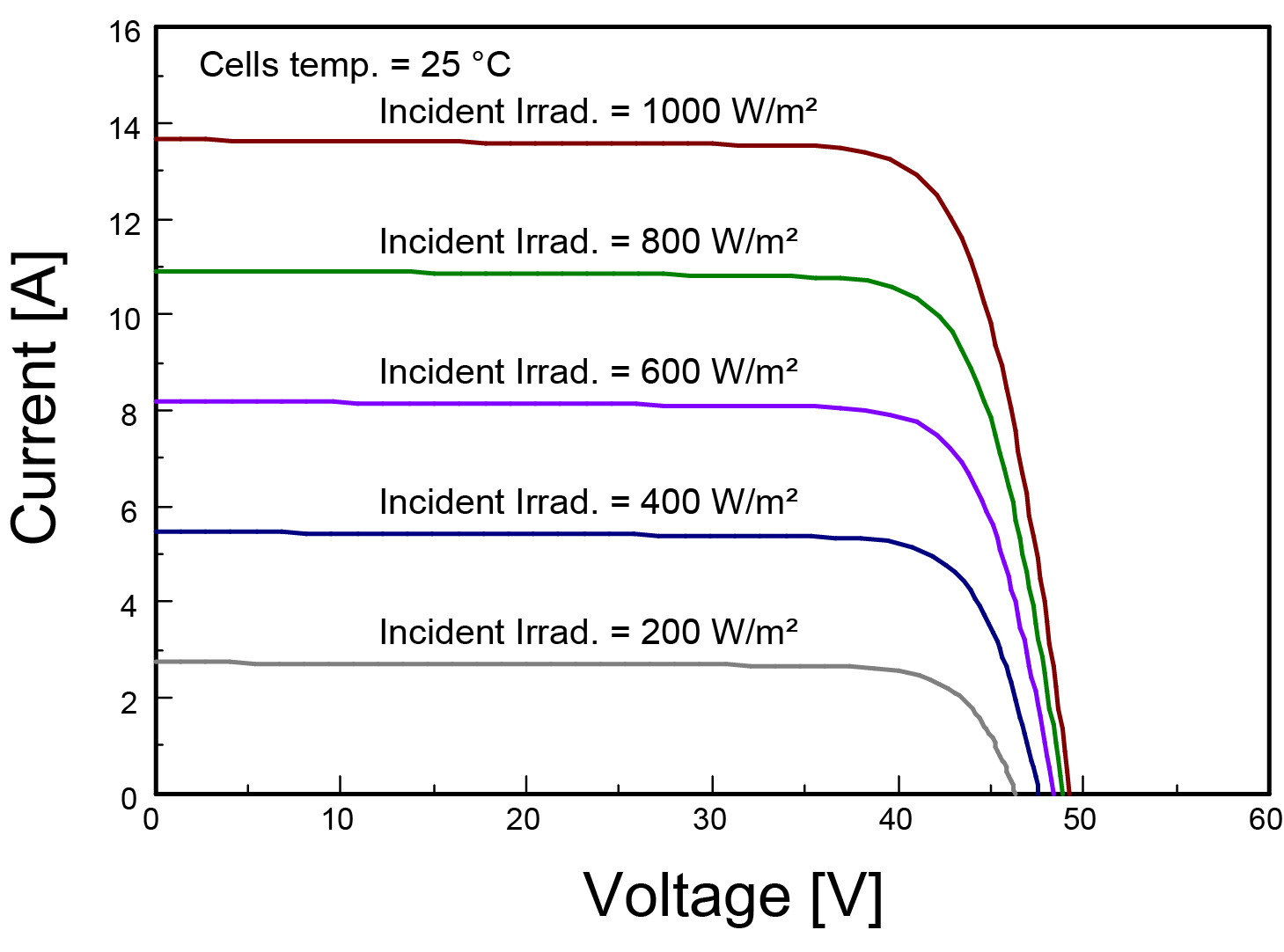

I-V CURVE of PV Modules (545w)
Technical Details

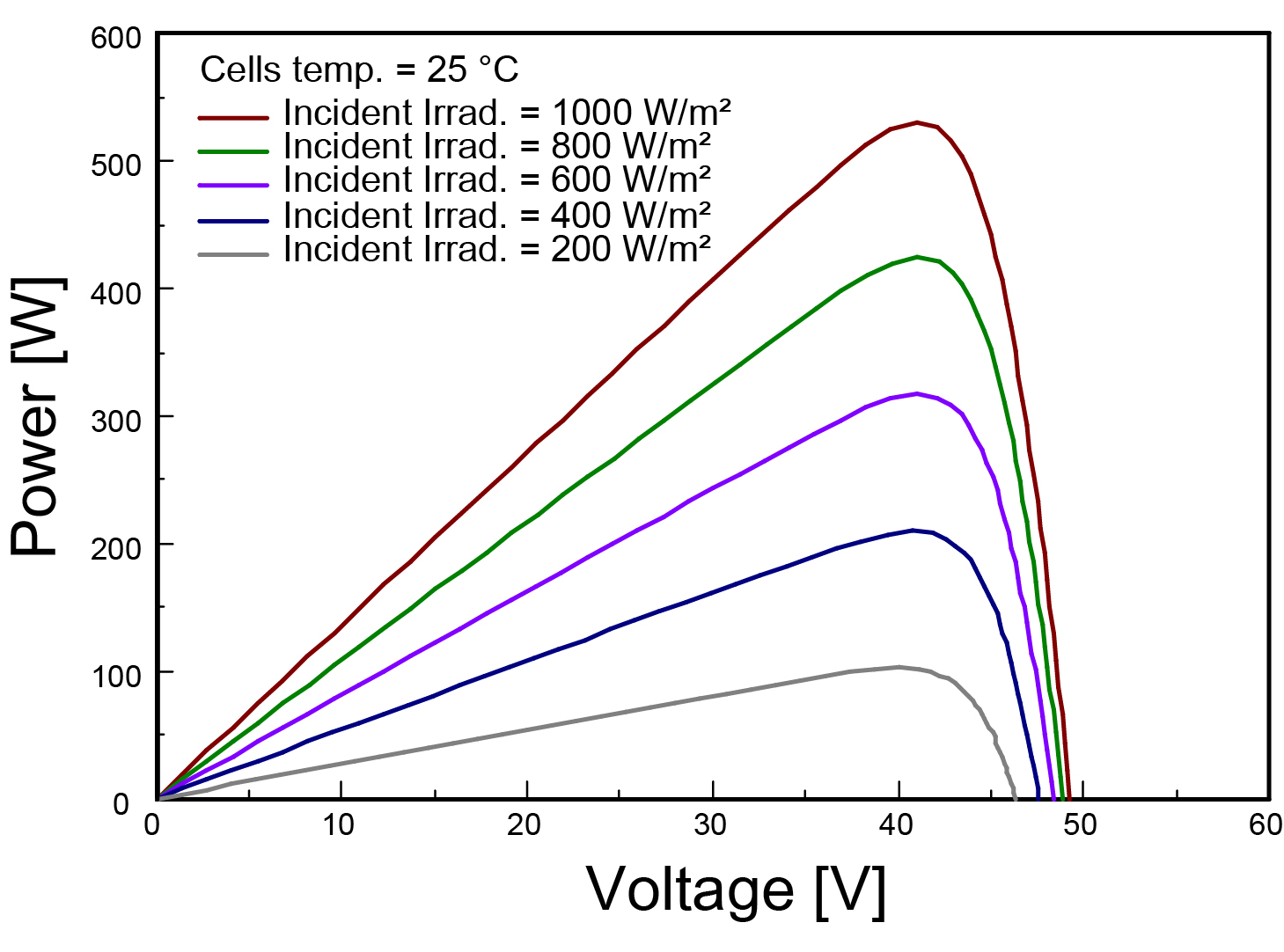

P-V CURVE od PV Modules (545w)

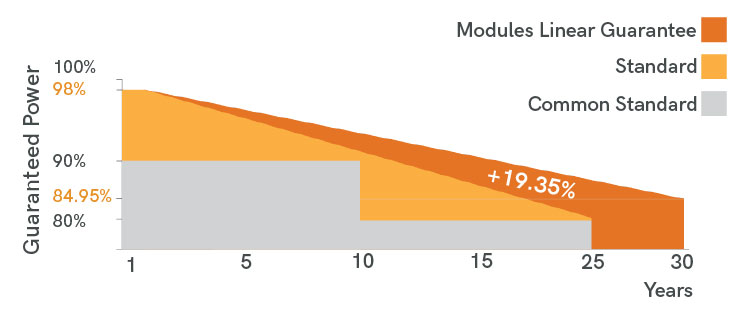

WARRANTY
12 Rears for product warranty
30 Years output guarantee
IEC 61215/IEC 61730/IEC 61701/IEC 62716/UL6 1730
ISO 14001: Environmental Management System
ISO 9001: Quality Management System
ISO45001: Occupational Health and Safety Management System
Certified with manufacturer.
*Remark: customized frame colour and cable length available upon request, minimum quantity applies.
